20" swg 1.5HP spdl clausing 2285 variable speed drill p
20" Swg 1.5HP Spdl Clausing 2285 VARIABLE SPEED DRILL P
20" Swing 1.5HP Spindle Clausing 2285 VARIABLE SPEED DRILL PRESS, Vari-Speed, Clausing Geared PDF, P

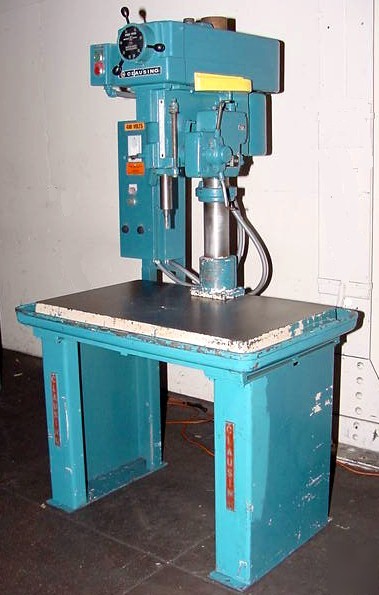

20" CLAUSING VARIABLE SPEED DRILL PRESS
MODEL: 2285, S/N: 520974, NEW: 1977
CAPACITY - CAST IRON ................ 1-1/4"
DRILLS TO CENTER OF CIRCLE .......... 20" DIAMETER
OVERALL SIZE OF TABLE (F-B x L-R) ... 29-1/2" x 45-1/2"
WORKING SURFACE OF TABLE (F-B x L-R). 24" x 40"
SPINDLE TAPER ....................... #3 MORSE
SPINDLE TRAVEL ...................... 6-1/2"
MAXIMUM DISTANCE SPINDLE TO TABLE ... 25-7/16"
SPINDLE SPEEDS INFINITELY VARIABLE .. 300-2,000 R.P.M.
POWER DOWNFEEDS (4) ................. .004, .006, .009 & .012 IPR
APPROXIMATE WEIGHT .................. 1,450 Lbs.
29-1/2" F-B x 45-1/2" L-R PRODUCTION TABLE W/COOLANT TROUGH
CLAUSING MODEL: 2215 GEAR DRIVEN POWER DOWN FEED UNIT
MANUALLY OPERATED RACK & PINION TYPE MECHANISM FOR
RAISING/LOWERING OF DRILLING HEAD ON COLUMN.
DRILL HEAD SWIVELS ON BALL RACE ON SPINDLE COLLAR.
1.5 H.P. 3/60/230-460 VOLT SPINDLE DRIVE MOTOR
