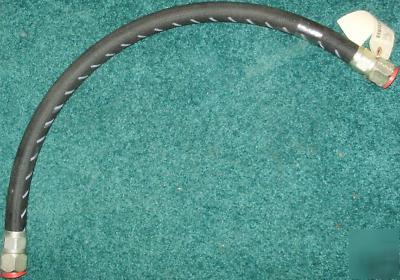

Nos aeroquip FA1777MMM0336 fuel / oil hose 1000 ppsi
Cage Code: Part Number: Company Name:
01276 FA1777MMM0336 EATON-AEROQUIP INC DIV FLUID CONNECTORS PRODUCTS
CROSS-SECTIONAL SHAPE STYLE 1 ROUND
INSIDE DIAMETER 0.875 INCHES NOMINAL
TEMP RATING -40.0 DEG FAHRENHEIT AND 300.0 DEG FAHRENHEIT
OUTSIDE DIAMETER 1.219 INCHES NOMINAL
MINIMUM INSIDE BENDING RADIUS 4.500 INCHES
FIRST END CONNECTION TYPE THREADED INTERNAL TUBE
FIRST END STYLE DESIGNATOR C3 SWIVEL NUT FLAREFIRST END THREAD CLASS 3B
FIRST END THREAD DIRECTION RIGHT-HAND
FIRST END SEAT ANGLE IN DEG 37.0
INNER CONVEYING TUBE MATERIAL RUBBER, SYNTHETIC
FIRST END CONNECTION DESIGN STRAIGHT
FEATURES PROVIDED ELECTROSTATIC DISCHARGE CAPABILITY AND REUSABLE END FITTINGS
BURST TEST PRESSURE 1000.0 POUNDS PER SQUARE INCH
FIRST END SWIVEL ACTION CAPABILITY NOT INCLUDED
LAYER COMPOSITION AND LOCATION 1ST LAYER BRAIDED CORROSION RESISTANT STEEL WIRE, PARTIAL COVERAGE
LAYER COMPOSITION AND LOCATION OUTER LAYER RUBBER IMPREGNATED FABRIC
FIRST END FITTING/COMPONENT AND MATERIAL COMPLETE FITTING STEEL
MAXIMUM OPERATING PRESSURE 250.0 POUNDS PER SQUARE INCH
FIRST END FITTING/COMPONENT AND SURFACE TREATMENT COMPLETE FITTING CADMIUM
FIRST END THREAD QUANTITY PER INCH 12
FIRST END THREAD SERIES DESIGNATOR UN
FIRST END NOMINAL THREAD SIZE 1.312 INCHES
HYDROSTATIC TEST PRESSURE 500.0 POUNDS PER SQUARE INCH
OUTER COVERING ENVIRONMENTAL PROTECTION OIL RESISTANT
INSIDE SURFACE CONDITION SMOOTH
MEASURING METHOD AND LENGTH 33.750 INCHES NOMINAL OVERALL
MEDIA FOR WHICH DESIGNED FUEL/OIL, HYDROCARBON
