Osram dulux cfl 4-pin electronic ballast qt-t/e 1X57W

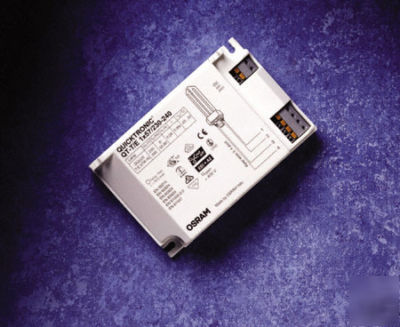

OSRAM Dulux CFL 4-pin Electronic Ballast QT-T/E 1x57W
* QUICKTRONIC (PROFESSIONAL) for OSRAM DULUX T/E, D/E, S/E and HO compact fluorescent lamps
* Supply voltage: 230 to 230 V or 220 to 240 V
* DC voltage range: 176 to 254 V or 176 to 276 V; lamps must be ignited at over 198 V
* Lamp start: Lamp start within 1 s or 1.5 s with optimum filament preheating
* Automatic safety shutdown of lamps in the event of a defect or at end of life (EOL)
* Automatic restart of replacement lamps
* Approval marks: ENEC 10 sign, VDE sign, EMV-sign
* Lamp operation to EN 60929
* RI suppression: to EN 55015
* Mains harmonics: to EN 61000-3-2
* Additional features: EOL sign, Cut off sign
* Design / Version : ECG-Standard
* Standard : DIN VDE 0875/CISPR 15/EN 55015 / EN 61547 / IEC 61000-3-2/EN 61000-3-2
* Operating frequency : 40...45 kHz
* TH full width at half maximum : 210 s
* Mounting hole spacing, length : 129.5 mm
* Wire preparation length, output side : 8....11 mm
* Wire preparation length, input side : 8....11 mm
* Maximum operating temperature at the Tc : 70 C
* Ambient temperature range : -10 ... +50 C
* Model: QT-T/E 1x57/230-240
* Cater to Fluorescent Lamp Watt: 1x57W
* Lamp type: Dulux CFL 4-pin
Unit Price:US$540.39/12pcs
Our Ref. G400/HD210/PM155/OP12
