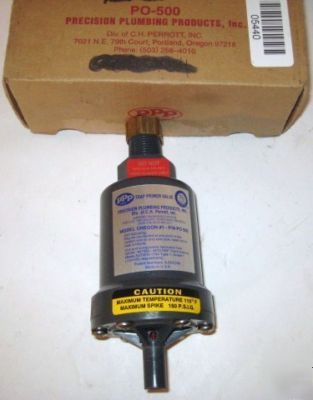

Precision plumbing oregon #1 po-500 trap primer valve


This listing is for a valve.
* Make: Precision Plumbing Products Inc
* Model: Oregon #1 (Number One)
The OREGON #1 Trap Primer Valve is a diaphragm operated primer which delivers a fresh water prime to seldom used floor drains. This primer requires no adjustment but must be installed on a cold fresh water line of 1 1/2" (38mm) diameter or less. The primer valve is automatically activated when it senses a pressure drop of 5 to 10 PSIG (35 to 70 kpa). The valve's operating range is 30 to 75 PSIG (245 to 525 kpa).
* AUTOMATICALLY MAINTAINS A CONSTANT WATER SEAL IN FLOOR DRAIN TRAPS.
* BEST FOR USE WITH LOW FLOW FIXTURES, WHEN POTENTIAL PRESSURE DROP IS REDUCED.
* AUTOMATICALLY ADJUSTS TO LINE PRESSURE WITH PROPER DELIVERY AMOUNT.
* ONE MODEL FOR 1 TO 4 FLOOR DRAIN TRAPS.
* "OREGON #1" Floor Drain Trap Primer Valve Components and Specifications:
* Body, Check Valve, Retainer Plate, Float (Polypropylene), Cover Material Specification: Geon PVC M-1000 Type 1, Grade 1 molding compound. NSF listed material #270
* Check Valve Ball: #316 - Stainless Steel Check Valve Ball Retainer Monel Metal
* Cover Screws: (6) 5/8" x 10/24" Stainless Steel
* Slip Joint Nut - 1/2" NPT: Chrome Plated Brass
* Slip Joint Nut Washer - Neoprene Strainer: 40 Mesh - Stainless Steel Wire Cloth
DISTRIBUTION UNIT INSTALLATION:
* Must be installed level.
* Must be installed with clear plastic cover.
* Must be installed with access for periodic inspection.
* Do not subject trap primer to rough-in pressure test.
* Distribution Units DU- 4 & DU-U.
* A metered amount of fresh cold water from the floor drain trap primer is distributed to as many as four (4) individual floor drain traps by means of the patented distribution unit.
* For further detail see information sheet specific for the distribution units.
The PPP TRAP PRIMER VALVE is listed by:
* International Association of Plumbing and Mechanical Officials (IAPMO)
* Chicago Testing Laboratory
* Los Angeles Testing Laboratory
* Oregon State Plumbing Code
* Mechanical Engineers in major cities throughout the United States.
For Full specifications, please visit PPP Inc's product page at http://www.pppinc.net/index.php?action=view_document&path=%A6%DD%D4%DA%9E%DB%E6%CB%C2%D4%9E%E6%EE%DF%90%C9%DF%D0%DA%D0%C6%9A%A1%9E%DB%C9%D5%C9%9E%E3%DC%DB%D5%C7%D3%DE%DA%DB%90%B8%E1%DE%DB%DD%C4%DC%E2%9E%CB%DA%C2%D8%8F%BF%E9%D1%CE%CD%E1%E2%A6%B7%D3%CD%D6%DE%E5%88%84%99%9E%BE%E9%CD%C8%D7%DD%CE%A8%96%C9%DC%DC%DB&did=1158699255
