Watkins-johnson M63C mixer 2.5-5.5 ghz

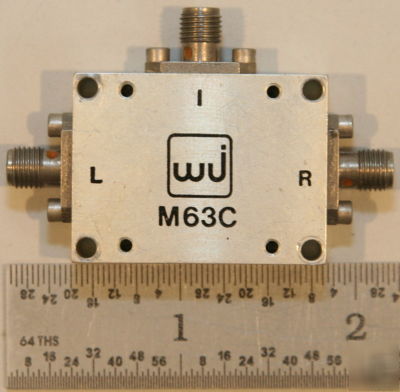

Watkins-Johnson M63C Mixer 2.5-5.5 GHz
Watkins-Johnson M63C Mixer Specifications:
* RF Frequency Range: 2.5 to 5.5 GHz
* IF Frequency Range: DC to 1.5 GHz
* Conversion Loss (Noise Figure) Typ.: 5.4 dB
* fR Level at 1 dB Compression Point Typ.: 2 dBm
* Isolation Typ., L-R: 40 dB
* Isolation Typ., L-I: 27 dB
* Input Intercept Point Typ.: 10 dBm
