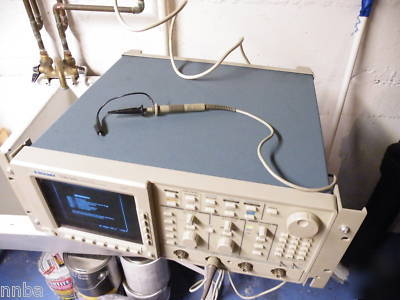

Used tektronix tds 540 with probe


The TDS540 Digitizing Oscilloscope acquires, displays, and measures waveforms. With a bandwidth of 500MHz, 1Gs/s digitizing rate, 4- channel acquisition, and full GPIB software programmability, it's performance addresses the needs of both benchtop lab and portable applications.
The Tektronix TDS540 oscilloscope is a graph-displaying device it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.
