3MM orange diffused led leds 20MCD x 50PCS

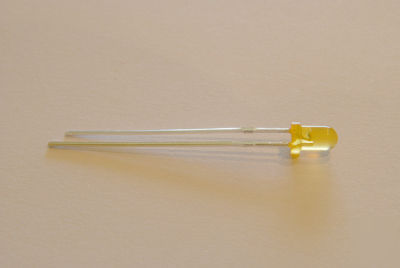

Up for sale 50 pcs. of brand new 3mm, Orange Diffused LED.
Forward Voltage (@ If=20mA): 2.2-2.5V
Reverse Current (@ Vr=5V): 10uA
Viewing Angle (@ If=20mA): 35Deg
Luminous Intensity (@ If=20mA): 10-20mcd
Peak Emission Wavelength: 635nm
Continuous Forward Current (If): 20mA
Peak Forward Current (1/10 Duty Cycle 0.1ms PulseWidth):100mA
Operating temperature Range: -25 to +100 C
Storage Temperature Range: -40 to +100 C
