Tektronix tds 754 4CH 500MHZ 2G/s dpo oscilloscope opt


Tektronix TDS 754 4Ch 500Mhz 2G/S DPO Oscilloscope Opt

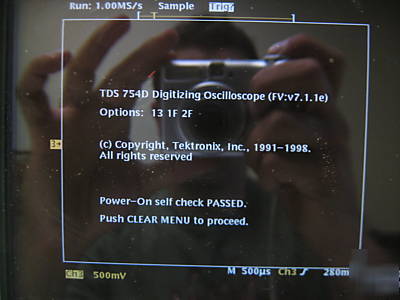

Options listed on boot up: 13 1F 2F
Tektronix TDS754D Oscilloscope, Digital: 500MHz,2GSa/s,4ch (Stand alone)
The Tektronix TDS754D oscilloscope is a graph-displaying device it draws a graph of an electrical signal. In most applications, the graph shows how signals change over time: the vertical (Y) axis represents voltage and the horizontal (X) axis represents time. The intensity or brightness of the display is sometimes called the Z axis.
The Tektronix TDS754D oscilloscope's simple graph can tell you many things about a signal, such as: the time and voltage values of a signal, the frequency of an oscillating signal, the moving parts of a circuit represented by the signal, the frequency with which a particular portion of the signal is occurring relative to, other portions, whether or not a malfunctioning component is distorting the signal, how much of a signal is direct current (DC) or alternating current (AC) and how much of the signal is noise and whether the noise is changing with time.
Performance Characteristics of the TDS754D
Auto,Edge,Logic,Normal,Pulse,Single
Programmability/Connectivity of the TDS754D
Please email if you have any questions or would like to speak with someone in person. This item can be inspected at our Lab in Bloomfield, CT.
