Bacharach PCA2 225 24-8370 portable combustion analyzer
Bacharach PCA2 225 24-8370 Portable Combustion Analyzer
Fyrite Tech - Residential Combustion Gas Analyzers
Affordable, State of the Art Combustion Analyzer

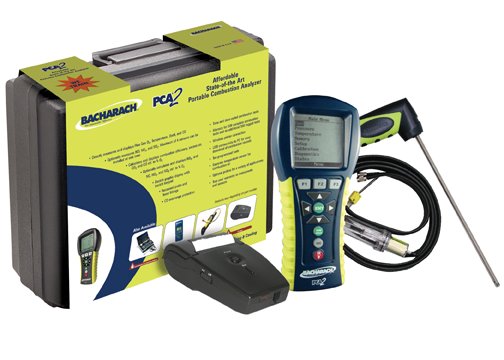

PCA2 tester,Hard Carry Case, Probe and Hose Assembly, Factory Calibrated and Installed Sensors, Instruction Manual, Batteries, USB Cable, PC Software and Printer.
The PCA 2 is a commercial grade, handheld combustion and emissions analyzer for on-demand or semi-continuous sampling of light industrial, institutional, commercial and residential furnaces, boilers and appliances. The PCA 2 is the perfect tool for service technicians and boiler contractors who need to ensure safe operating conditions, determine combustion efficiency, or perform emissions testing in combustion applications.
The PCA 2 directly measures and displays flue gas Oxygen (O2), Carbon Monoxide (CO), Stack Temperature, Draft, Differential Pressure, Combustion Air Temperature and optionally measures and displays Nitric Oxide (NO), Nitrogen Dioxide (NO2) and Sulfur Dioxide (SO2). Simultaneously, the PCA 2 calculates and displays combustion efficiency (EFF), Excess Air (EA), Carbon Dioxide (CO2), NOx and Oxygen reference values. The PCA 2 performs combustion calculations for ten fuels including, Natural Gas, Oil #2, Oil #4, Oil #6, Propane, Coal, Wood, Kerosene, Bagasse and Digester Gas. The large backlit graphic displays shows eight different measurements and calculated values simultaneously, and also has zoom capabilities.
Measures 4 Gases Simultaneously
* Optional - CO (high), NO, NO2 & SO2
Automatic CO Overrange Protection
* Optional universal power supply
* 160 x 160 graphic liquid crystal display
Primary/Ambient Air Temperature
Primary-air/Ambient Temperature
2% reading or 0.02 inwc whichever is greater between 0 and 10 inwc
3% of reading between 10 and 72 inwc
5% of reading or 10 ppm whichever is greater between 0 - 2000 ppm CO
10% of reading between 2001 to 20,000 ppm
5% of reading or 5 ppm whichever is greater between 0-2000 ppm NO
5% of reading or 5 ppm whichever is greater between 0-500 ppm NO2
5% of reading or 10 ppm whichever is greater between 0-2000 ppm SO2
500 complete combustion test records
500 complete logged combustion test records
Natural Gas, Oil #2, Oil #4, Oil #6, Propane, Coal, Wood, Kerosene, Bagasse and Digester Gas
9"H x 3"W x 2.5"D (22.9 cm x 7.6 cm x 6.3 cm)
Four disposable AA alkaline batteries or NiMH rechargable batteries providing 10 hours of continuous operation. Optional AC power adapter
160 x 160 (2.5 in x 2.5 in) Graphic Liquid Crystal Display
60 second total warm up time (sensors are checked and autozeroed during warm up)
