Gleason curvic coupling gear grinder #22397

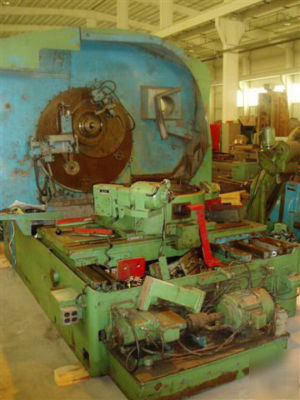

GLEASON CURVIC COUPLING GEAR GRINDER
Model No. 130 GLEASON Full Automatic Curvic Coupling
Grinding Machine, suitable for the finish grinding
(from the solid), workpiece blanks up to 60"(1525mm)
diameter, and .375" (12mm)in depth
Maximum full depth .................... .375" (12mm)
Maximum diameter (for clearance) ...... 60" (1524mm)
Maximum diameter coupling ............. 36" (914mm)
Index range ........................ 20 to 200 teeth
Sliding base withdraw ................... 10" (245mm)
Work spindle thru-bore diameter ......... 20.5" (521mm)
Max./Min. point diameter(s) of grinding wheels
utilized .................. 5.5"-13.25" (140-336mm)
Main drive motor .................. 1/2 HP (1800 rpm)
Wheel drive motor ................. 6 HP (1800 rpm)
Hydraulic motor ................... 3 HP (1800 rpm)
Index drive motor ................ .5 HP (1800 rpm)
Work spindle motor ............... .5 HP (1200 rpm)
Coolant motor .................... 1.5 HP (3600 rpm)
Workhead torque-motor ......120-130 in.Lbs.(600 rpm)
Automatic cylcle torque-motor ..40 in.Lbs.(1200 rpm)
Centrifugal filter motor ...........3 HP (1200 rpm)
Scavenger tank motor ...............1.5 HP (3600 rpm)
Floor space (including centrifugal
coolant tank unit) ..........138"x 95"(3505x2405mm)
Machine overall height ............ 101.25" (2571mm)
PRICE: F.O.B. OUR WAREHOUSE................$85,000.00
