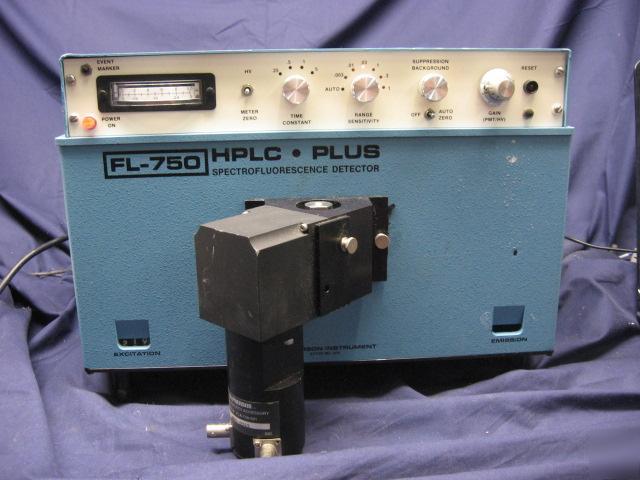

Mcpherson model fl-750BX/hsa hplc fluorescence detector
Other items for sale McPherson Model FL-750BX/HSA HPLC Fluorescence Detector
HPLC Spectrofluorescence Detector
The Model 750BX/HSA is a dedicated HPLC variable wavelength fluoroscence detector. It is specifically designed for chromatographers demanding high sensitivity and reasonable cost without sacrificing quality.
The unit features continuously variable excitation wavelength to cover the complete UV-VIS spectrum. In addition, interchangeable light sources allow to optimize sensitivity in the spectral region of interest.
Continuously variable excitation wavelength.
E-Z interchangeable flow cells.
E-Z interchangeable prefocused light sources.
High sensitivity photomultiplier provides detection limits down to 0.1 pg. anthracene with deuterium lamp and 0.05 pg. anthracene with xenon-mercury lamp.
Compatible with all liquid chromatographs.
All sources supplied in prefocused mounts.
Cylindrical Quartz Capillary with choice of 1.5, 6, 12 or 24 uL illuminated volume.
0-800 nm using concave holographic grating zero order available with filters.
Wide range end-on highly sensitive Photomultiplier Tube (PMT).
Two position manual/autoset overload switch. In the autoreset position, the PMT is reset automatically every 2-20 seconds depending on the extent of overload.
Continuously variable. 0-1000V.
0.003 to 1 microamp full scale, six ranges plus autorange.
Full scale background suppression available on each sensitivity range.
Minimum detectable amount: 0.05 pg anthracene injected using 24uL cell.
0-IV and 0-10 MV for analog recorder A-D converter optional.
14.75"W x 9.25" D x 10.75" H (34cm x 24cm x 28cm)
