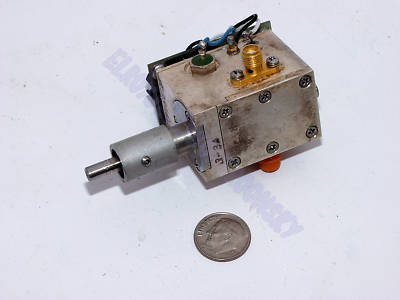

Narda west / loral tuneable 1.8 - 2.4 ghz oscillator
MECHANICALLY TUNEABLE, AFC VCC INPUT AND OUTPUT, NEG 28V IN (ALTHOUGH STABLE OPERATION BEGINS AT 16VDC) UNIT HAS AN ONBOARD AFC CIRCUIT AND VOLTAGE REGULATOR FOR THE OSCILLATOR BIAS.
OUTPUT +12DBM VOLTAGE AND CONTROL PINS ARE CLEARLY MARKED, TUNING SHAFT ACCEPTS STD 4.7MM KNOB OR PINION. TESTED, WORKING, MUST BE HEAT SUNK
