Okuma ma-400HA cnc horizontal machining center

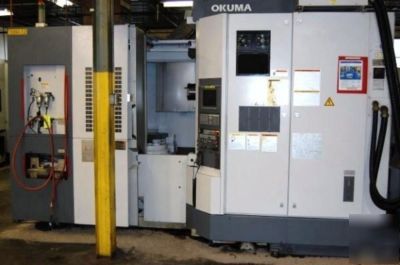

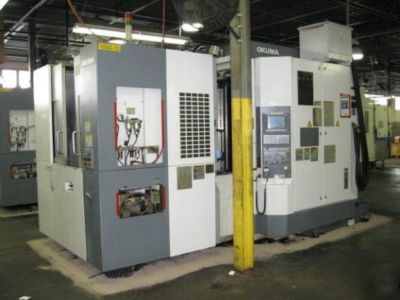

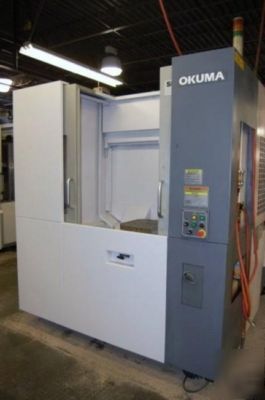

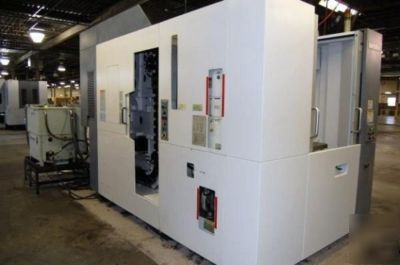

Okuma MA-400HA CNC Horizontal Machining Center
X-Axis Travel ..................................... 22.06"
Y-Axis Travel ..................................... 24.02"
Z-Axis Travel ..................................... 24.61"
Pallet Size ........................... 15.75" x 15.75"
Pallet Indexing ....................... 1 Degree
Max. Weight on Table .................. 880 Lbs.
Max. Workpiece Dimensions ............. 23.6" x 27.95"
Spindle Nose to Table Center .......... 3.35"-27.95"
Spindle Center to Table Top ........... 1.97"-25.98"
Spindle Speed Max. .................... 50-8000 RPM
Spindle Drive Motor ................... 20 HP / 15 HP
Spindle Taper ......................... CAT 40
Rapid Traverse (X-Y-Z) ................ 1970 IPM
Cutting Feed Rate (X-Y-Z) ............. 0.04"-2362 IPM
Max. Tool Dia. ........................ 3.94" / 5.91"
Max. Tool Length ...................... 11.81"
Max. Tool Weight ...................... 22 Lbs.
Machine Dimensions .................... 179" x 95"
Machine Height ........................ 110"
Approx. Weight ........................ 25,300 Lbs.

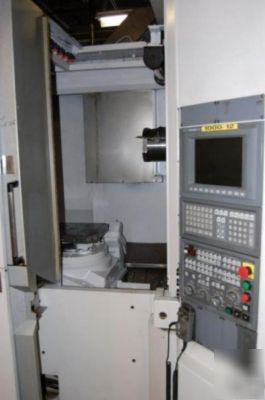

Okuma OSP-E100M CNC with Graphics, Color Display, Floppy
Dual 15.75" x 15.75" Pallets, Auto Pallet Changer

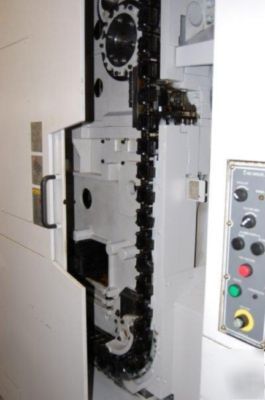

60-Position Automatic Tool Changer
Chip Blaster J8-1000 High Pressure Coolant Through Spindle
