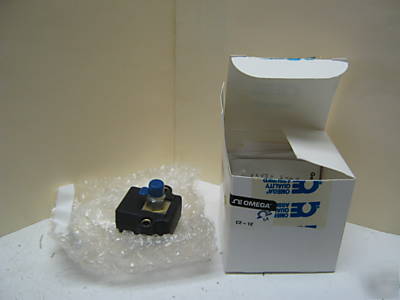

Omega PX105-500G5V fast response pressure transducer
OMEGA PX105-500G5V FAST RESPONSE PRESSURE TRANSDUCER
Excitation: 8 to 20 Vdc at 15 mA
Accuracy: 1% full scale maximum
Linearity: <50 psi 0.5 50psi 2% FS
Zero Balance: 1% full scale Typ. 3% full scale max.
Frequency Response: 3 db at 1.5 kHz
Compensated Temperature Range: 32 to 185 F (0 to 85 C)
Thermal Zero Effect: 0.01% Rdg/ F ( 0.02% Rdg/ C)
Proof Pressure: 2 x full scale
Burst Pressure: 5 x full scale Minimum (6,15,25, psig = 20 x FS)
Diaphragm/Port Material: 300 Series SS (Silver, Copper, Nickel, Cadmium Brazed)
Electrical Connection: CX106-4
