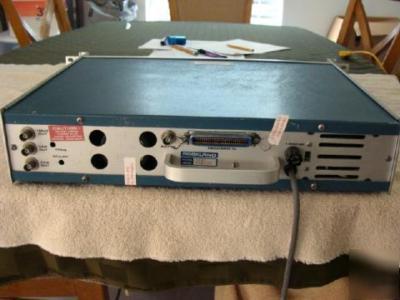

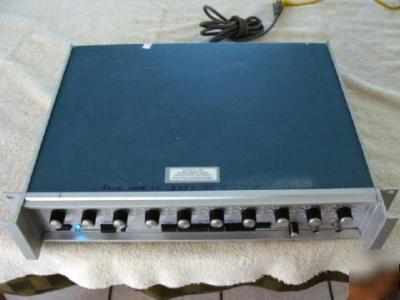

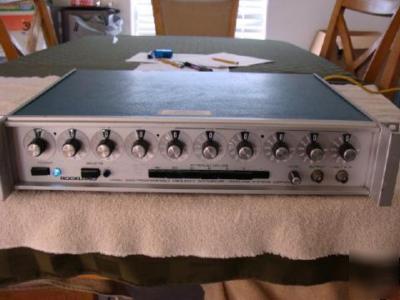

Rockland 5100 programmable frequency synthesized
Reference output (internal standard) = Frequency 1 MHz square wave, Aging Rate: + or - 5.00 x 10 to the -6 power, + or - 0.73 x 10 to the -6 (option 001).
Frequency = Frequency: 0.001 Hz to 2,000,000.00 Hz, Tolerance: + or - 1 Hz.
Frequency response = 50 ohms load, full output: + or - 0.25 dB, 0.001 Hz to 500 kHz; + 0.5 dB, - 2.5 dB, 500 kHz to 2 MHz.
Attenuator = Maximum output: + 13 dBm (1V) min. Attenuator range: 0 to 85 dB, Tolerance: + or -5.5 dB, 0.001 Hz to 500 kHz.
Fixed output = Amplitude: 1V p-p typical.
For other information and specs, email me for the instruction calibration manual.
