SRLC24, imo safety relays cat, 3 24VDC

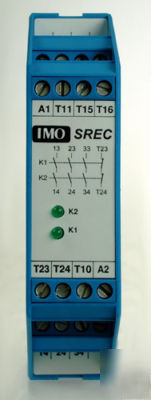

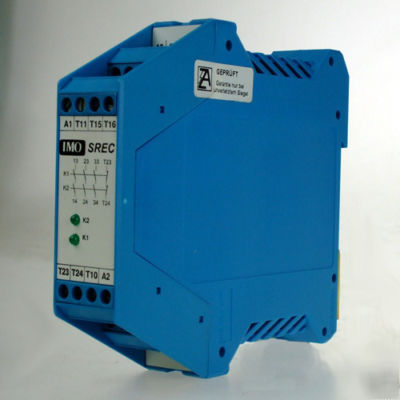

IMO Safety / Emergency Stop Relay SRLC
Authorised listing by IMO Precision Controls
Extremely compact universal Emergency Stop Relay. Designed to be
used in safety-circuits in accordance with EN60204-1
Operating voltage 24VDC to 230VAC
Self monitoring with redundancy
One or two channel emergency stop circuit
Safety category 1 and stop category 0
Conforms to EN60204-1, VDE0113-1, EN954-1escription
Switching capacity of contacts AC:
250V, 1500VA, 6A, DC: 24V, 30W, 1.25A
1 x 10 (7) switching operations
1 x 10 (5) switching operations
VDE0113, part 1/06.93, EN60204-1:1992 EN954-1:1996
