Sheet metal bolt set – john deere a & b, hand-start
Sheet Metal Bolt Set John Deere A & B, Hand-Start
Fully Researched -Authentic Duplication of Originals.
Most fasteners are Zinc-Coated finish & Lightly Oiled 32 pieces!
Cushion pads and washers are not included
You receive Square Nuts for where they were in the original configuration.
One complete, new Sheet Metal Nut & Bolt Set for John Deere A or B Tractor (Not long hood).
These Sets a Valid ONLY for Styled A & B HAND-START Tractors with PAN SEATS
NOTE: This set WILL fit & serve on later models of A & B tractors - but are NOT like factory bolts!
**See Analysis & Story at End of Listing **
Specific Models and Serial Number range = Important!
1. Model A, S/N 477,000 583999:
2. Model B, S/N 60,000 200,999:
PC675 Parts Catalog is a bit vague on this issue, thus full description of the specific fasteners you need and where they are needed is provided with the kit.
Satisfaction Guaranteed I am proud of these fasteners! You will be too.

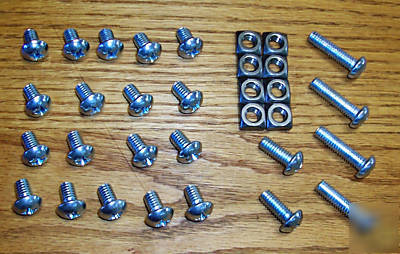

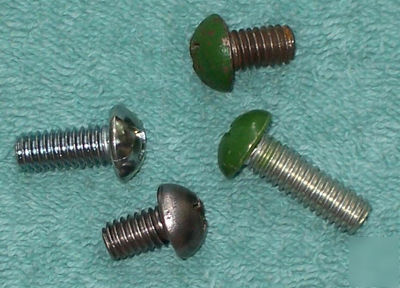

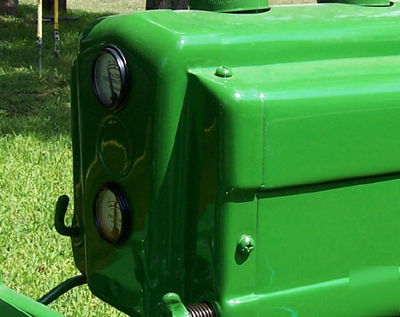

PHOTO's - The key photo is of the set you will receive. The 2nd photo is showing four screws; the two short ones are factory originals, the other two are mine. Then the last photo shows my screws installed on a Model H tractor.
Round Head Phillips Drive - Model A tractors went styled effective 477,000, B tractors effective 60,000 the start of the 1939 production year. G tractors went styled effective 13,000 the beginning of the 1942 production year. Model H tractors were all styled and this screw design was used for all. The fastener of choice as production of these tractors began was the Round Head, Phillips Drive, 5/16-18 machine screw.
Taft-Hartley Act of 1947 - Massive labor-unrest manifested itself in 1946, a year which stands to this day as a record year for lost labor hours industry wide! Quicker ways of doing things would need to be found. And to this end, Frederick W. Taylor manufacturing analysis was applied. One of the follow-on changes in the Deere factory was to change from Phillips Drive to Clutch Drive fasteners for sheet metal clutch drive screws hung on the bit better than would those with Phillips Drive. Thus, beginning with A584000, B201000, and G26000 The fasteners where Round Head, Clutch Drive. This change point coincided with what is known as the 2nd Styling. For Model A and B tractors, it was early in the 1947 production year, and for G tractors, it was in the early part of the 1948 production year.
Rebellion of Farmers - Farmers had tough enough time removing the Phillips drive screws but the Clutch drive screws were a challenge they did not like. For one thing, clutch drivers wasn t a common tool to have around, and the round head well it was round! And so, with farmers rebelling because they were unable to remove round head screws, Deere (starting with 1950 production) went to Hex Head, Clutch Drive screws. This was the factory fastener for A-B-G tractors through the end of their production runs (1952 for A & B) and 1953 for G tractors. End of Story!
