Tektronix 7B85 400 mhz tek time base plug-in "tested"
Tektronix 7B85 400 MHz Horizontal (Timebase) Amplifier for 7000 Series Oscilloscopes
The 7B85 Delaying Time Base Plug-In is a horizontal time base designed for use with the 7100-Series mainframes to provide high bandwidth/sweep speed compatibility, but may also be used with the 7800 and 7900-Series mainframes.
Change in Time Measurements with CRT Readout
Delay Time Measurements with CRT Readout
Vertical Trace Seperation between two Delayed Sweeps

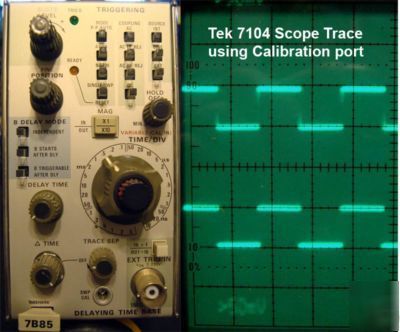

Unit has been tested in a 7104 Scope using Calibration output and produces two traces.
