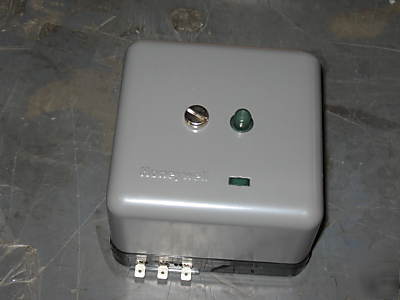

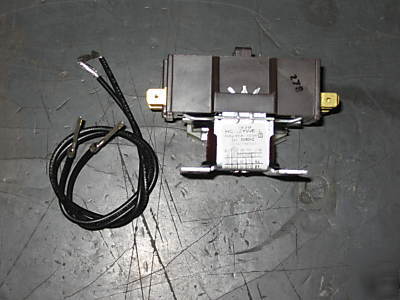

Honeywell 2 pole electric heat relay
Features Designed for quiet operation. R8246A and R8229A replace over 50 Honeywell and competitive electric heat primaries, including the Honeywell R8330 Electric Furnace Sequencer. Use on furnaces with a line voltage or pilot duty limit. Simple ON-OFF switching - readily understood and easily serviced- Eliminates cold drafts on system startup. Product Specifications Description 2 pole Electric Heat Relay Application Electric Heat Contactor Coil Ratings Voltage 24 Vac Poles 2 Electrical Connections (main) Male 1/4 in. (6 mm) quick-connects plus terminal clamp screws Contact Connections (coil) No. 10 terminal clamp screws and double male 1/4 inch quick-connects Dimensions (in.) 2 3/16 in. high x 2 5/16 in. wide x 3 5/16 in. deep Dimensions (mm) 56 mm high x 58 mm wide x 84 mm deep Temperature Range (F) -20 F to +150 F Temperature Range (C) -29 C to +66 C Contact Electrical Ratings (Resistive @ 277, 480, 600 Vac) 48 A @ 240/277 Vac 1st pole resistive only Tradeline Value Tradeline
