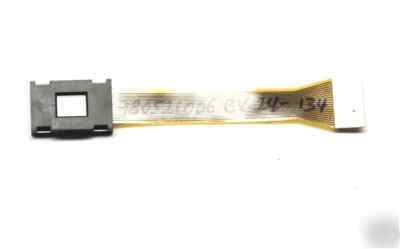

Kopin cyberdisplay 320 tiny .24" lcd display
The CyberDisplay 320 is an active-matrix liquid crystal display, with 320 240 spatial resolution. The display is fabricated in a high speed, low power CMOS process utilizing single crystal silicon-on-insulator (SOI) starting material. The display s integrated horizontal and vertical shift registers with thin film transistors meet the performance demands of high-speed video applications. The display uses complementary analog video inputs. All digital control inputs accept 3.3 5.0 -volt levels
320 (H) 240 (V) spatial resolution (76,800 pixels).
Active pixels 320 240 (76,800 pixels).
3.3 5.0 volt CMOS logic compatible control signals with built-in level-shifter
High performance: up to 72 frames per second
1 positive and 1 negative polarity staggered analog video inputs
Integrated horizontal and vertical shift registers
Right to Left or Left to Right Scanning
Ultra-compact size: Active display area 4.80 mm 3.60 mm (0.24 inches diagonally)
