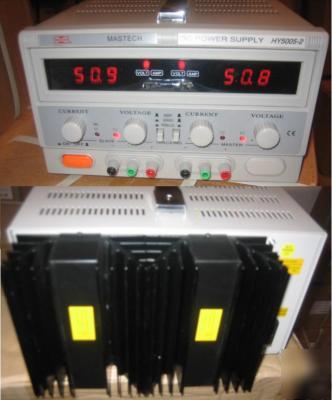

Mastech power supply (HY5005D-2)linear model 0-50V/0-5A
BRAND NEW MASTECH Linear DC POWER SUPPLY
DUAL VARIABLE VOLTAGE : 0 TO 50 V
DUAL VARIABLE CURRENT: 0 TO 5 A
Two Power Outputs: 2 Variable: 0 - 50 Volts @ 0 - 5 Amps
Constant voltage/ Constant Current
Voltage and Current adjustment
Power effect: CV<0.01%+2mV, CC<0.2% + 2mA
Overload effect: CV<0.01% +3mV, CC<0.2% +3mA
Waves and noises: CV<0.5mV r.m.s, CC 3mA, r.m.s
Protection: Current limited & Short circuit protection
Operating Temperature : 0 - 102 F ( 0 -40 C), Relative Humidity: <90%
LCD Accuracy is within + or - 2%
Size: 13 1/2" x 10" x 8" , 29.5 ibs
