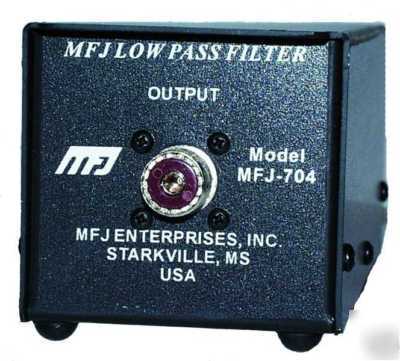

Mfj 704 legal limit low pass filter
Nine Chebyshev poles, MFJs exclusive TeflonDielectric Technology capacitors, Hi-Q inductors, ground plane shielding and an RF tight cabinet give you excellent TVI and RFI protection.
These exclusive Teflon Dielectric Technology capacitors give you extremely low loss and eliminate voltage breakdown and capacitor heating - even at full legal power with a 2:1 SWR load! The result You get the lowest possible loss, excellent harmonic attenuation and years of trouble-free and TVI-free service. Handles full legal power from 1.8 to 30 MHz. SWR below 1.3 to 30 MHz into 50 Ohms. Attenuates above 40 MHz. Measures a compact 3x3x9 inches. Handy mounting tabs.
