New veris H548 motor status/command relay w hoa switch

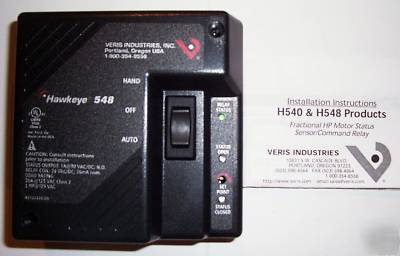

Veris H548 Motor Status Sensor/Command Relay with HOA switch. New!
The Hawkeye 5xx Series combines an industrial
grade load-switching relay, current status switch,
and Hand-Off-Auto (HOA) switch in an easy-to-install
remote enclosure, making the series ideal for
monitoring, directly controlling, and troubleshooting
the control wiring of fractional horsepower motors.
The relay, current sensor, and HOA switch are
combined in a series circuit. Once an H548 is wired
in series between the power source and motor, all
three components are installed. The housing provides
physical separation and multiple wiring exits to
isolate control and high voltage wiring. An H548 can
be mounted directly on 2- or 4-gang junction boxes,
nippled to a field enclosure, or stand alone.
Monitoring status and controlling small motor
loads that are not driven by a motor starter or
U.S Patent No. 431,534
COMBINATION SWITCHING RELAY,
CURRENT STATUS WITH, & HOA SWITCH
Sensor Power Induced from monitored conductor
Frequency Range 50/60Hz
Humidity Range 10 - 90% RH, non-condensing
Temperature Range -15 to 50 C (5 to 122 F)
Agency Approvals UL 508 enclosed device listing
