Adlink pci-8164 4-axis stepping & servo motion control

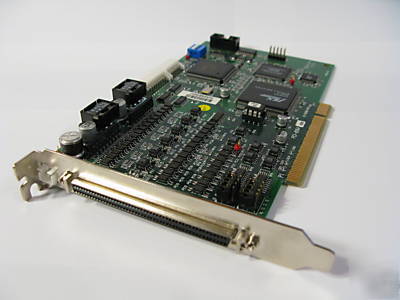

ADLINK PCI-8164 is an advanced 4-axis motion control card. Compared with the PCI-8132/34 series, PCI-8164 offers better linear and circular interpolated move and continuous contouring performance-ideal for advanced pulse train motion control solutions and complicated motion and pick-and-place applications.
* 32-bit PCI/PXI bus, Rev. 2.2, 33 MHz
* Pulse output rates up to 6.55 MHz
* Pulse output options: OUT/DIR, CW/CCW, AB Phase
* 2 to 4 axes linear interpolation
* 2 axes circular interpolation
* Multi-axis continuous interpolation
* Position/Speed change override
* 13 home return modes and auto home search
* Hardware position compare and trigger with auto-loading FIFO as a buffer
* High-speed position latch function
* Multi-axis, simultaneous start/stop
* Programmable interrupt sources
* Supports up to 12 cards in one system
* Hardware backlash compensator
* All digital inputs and outputs are 2500 VRMS isolated
* Manual pulser input interface
6.55 MHz under 4 x AB phase @ 1 M cable
-134,217,728 to +134,217,727 pulses (28-bit)
CMP (15 kHz for continuous triggering)
Differential and 2500 V RMS optically isolated
Incremental Encoder Signals Input Pin
Mechanical Limit Switch Signal Input Pin
Simultaneous Start/Stop Signal I/O Pin
