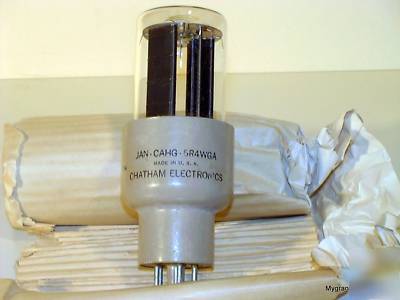

New 5R4WGA jan full wave power rectifier tube –
This 5R4WGA tube is a high vacuum full wave rectifier capable of supplying 950 VDC at 165 MA or 750 VDC at 275 MA. IT features a rugged construction that will withstand a shock impact of 900 G and high vibration stresses.
One of the design features is the shock mounting of the bulb in a skirted type base by a resilient silicone rubber. Although the base may be securely clamped to the chassis, the tube proper is insulated against shocks.
The low drain, fast heating, rugged filament permits instant application of plate voltage over a large portion of the operation characteristics.
Will replace any 5R4 tube, but make sure it will physically fit into your application. Seated it measures 4 13/16" tall by 2 1/16" wide. Hard glass bulb. Filament is 5.0 Volts @ 2.0 Amps.
This tube is brand new and never used. Photobucket
