UC3176, full bridge power amplifier, amp, unitrode (5)

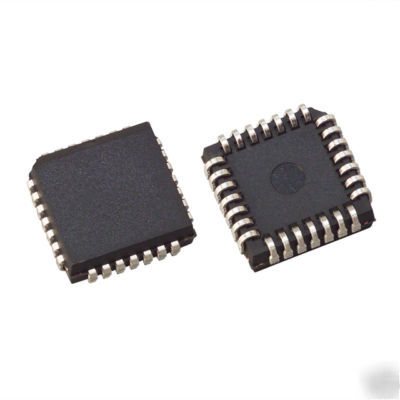

UC3176QP, Full Bridge Power Amplifier, 28 Pin PLCC, Quantity 5, Unitrode/Texas Instruments.
Auxiliary functions on this device include a dual input under-voltage comparator that can be programmed to respond to low voltage conditions on two independent supplies. In response to an under-voltage condition the power Op-Amps are inhibited and a high current, 100mA, open collector drive output is activated. A separate Park/Inhibit command input.
The devices are operational over a 3V to 35V supply range. Internal under-voltage lockout provides predictable power-up and power-down characteristics.
* Dual Power Operational Amplifiers
* 2A Output Current Guaranteed
* Precision Current Sense Amplifier
* Two Supply Monitoring Inputs
* Parking Function and Under-Voltage Lockout
* Safe Operating Area Protection
