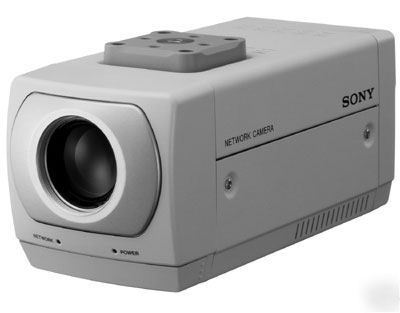

Sony snc-Z20N ip poe cctv camera network dvr nvr
Manufacturer: Sony Model/Part Number: SNC-Z20N
The Sony SNCZ20N fixed network IP color camera features embedded web server with a high- sensitivity Exwave HAD CCD for superb picture quality. It uses the industry-standard JPEG compression format. It's built-in auto focus 18x optical zoom lens, power over Ethernet (POE based on 802.3af standard) and optional wireless LAN capability, makes installation a snap.
This camera is equipped with many value added features such as an automatic Day/Night function and slow shutter functions that capture high quality color images by day and black and white images by night.
Remote Monitoring and Control Over Networks
The SNC-Z20N is equipped with a 100Base- TX/10Base-T (RJ-45) interface and a built in web server. This allows a PC running a standard web browser to monitor its live images and control the camera without the need for additional software or plug-ins. Up to 50 simultaneous users can access, monitor, and control the images of a single SNC-Z20N camera. In addition, images can be viewed from a Personal Digital Assistant (PDA).
The SNC-Z20N produces images with a maximum frame rate of 30 fps, allowing for clear and smooth frame accurate images to be viewed. The frame rate can be set to a fixed or variable frame rate, which is automatically adjusted according to the available bandwidth.
High Picture Quality and High Zoom Ratio
The SNC-Z20N incorporates a 1/4 type CCD with Exwave HAD technology that produces high resolution images with excellent sensitivity. The SNC-Z20N achieves a horizontal resolution of 470 TV lines. Its built in auto focus 18x optical zoom lens enables the user to obtain clear images over long distances. A maximum 216x zoom ratio is available when the optical zoom and 12x digital zoom are used together.
Selectable Image Quality and Size/Image Flip Function
The SNC-Z20N provides the flexibility to select image quality and image size according to network bandwidth. Employing the industry standard JPEG compression format, the SNC-Z20N has a selectable compression ratios between 1/5 and 1/60. Also, the image size can be selected from four modes: 736 x 480, 640 x 480, 320 x 240, and 160 x 120. Images from the camera can be electronically inverted including the analog video output, allowing the camera to be installed in a variety of locations and positions.
Activity Detection/Alarm Trigger
The SNC-Z20N is equipped with a built in activity detection sensor that can be set to trigger an alarm or a switch through alarm output ports. If a change in luminance level is detected in the field of view, an alarm is automatically triggered. In addition, the SNC-Z20N comes with an alarm input port to receive a trigger from an external sensor.
The pre and post alarm images stored at the time of an alarm event can be transferred to an FTP server, and the still image can also be sent to a specified e-mail address as a JPEG attachment, enabling the user to see what happened when an alarm occurred.
* Zoom: 18x Optical, 216x with Digital Zoom
* RAM: 32 MB (includes 8 MB alarm buffer)
* OS Supported: Microsoft Windows 98, 98SE, ME, NT4.0, 2000, XP
* Processor Supported: Intel Pentium III, 500 MHz or higher
* Interfaces: Composite Video, Ethernet 10Base-T/100Base-TX, PC Card Slot Type II, Serial RS-232C
* Video Resolution: 768 x 494
"Sony's SNC-Z20N is a feature-rich Network IP "box" style camera from Sony. It is packed with a number of usable features like motion detection, selectable image quality and IP filering to keep specific IP addresses from viewing the video. This is an easy IP camera to setup and with its support for power-over-Ethernet or POE, this camera is cutting edge. A solid camera at a competitive price from a visible name in the IP camera market. For other comparable IP cameras, check out the Panasonic models previously reviewed for Surveillent".
