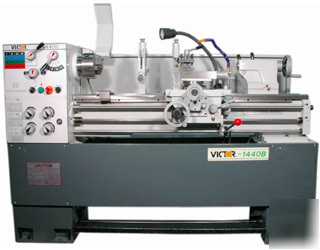

14" swg 40" cc victor 1440B engine lathe, with tooling


14" Swg 40" cc Victor 1440B ENGINE LATHE, With Tooling
14" Swing 40" Centers Victor 1440B ENGINE LATHE, With Tooling Package
New Victor 14" x 40" Engine Lathe
- Max. swing over bed 14 (355 mm)
- Swing over cross-slide 8-5/8 (219 mm)
- Distance between center 39.5 (1,003 mm)
- Number of spindle speeds 12 Speeds
- Range of spindle speeds 40 ~ 2,000 rpm
- Hole through spindle 1-1/2 (38 mm)
- Taper of spindle bore M.T. No. 5
- Inch threads 4 ~ 56 TPI x 34 kinds
- Metric threads 0.4 ~ 7.0 mm x 26 kinds
- Range of longitudinal feeds 0.0020 ~ 0.0548 /rev x 32 kinds
- Range of cross feeds 0.0007 ~ 0.0178 /rev x 32 kinds
- Cross slide travel 7 (178 mm)
- Compound rest travel 4 (100 mm)
- Tailstock quill taper M.T. No. 3
- Tailstock quill travel 4-7/8 (120 mm)
- Main motor / Coolant pump 3 HP 3Ph / 1/16 HP 3Ph
- Overall dimension of lathe (L x W x H) 73 x 29.1 x 47
- Packing size of lathe (L x W x H) 75.6 x 29.1 x 62
- Net / Gross weight 1,650 / 1,936 lb. (750 / 880 kg)
- Chuck cover with limit switch
- Quick change tool post & holders
- Digital Readouts - various choices
