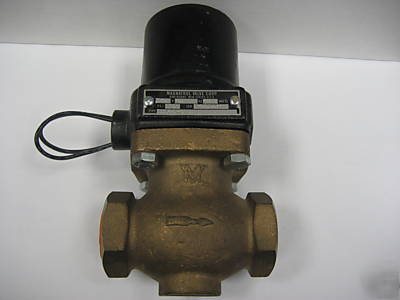

Magnatrol 16L44-0 16L44-o 1" oil solenoid valve
MAGNATROL 16L44-0, 16L44-O, 16L440, 16L44O
SPECIFICATIONS: 1" CONNECTIONS 120 VOLT 60 HZ 25 WATTS 110 PSI TYPE: 16L44-0 OIL OPERATION:
Valve opens when energized and closes when de-energized. When the coil is energized the pilot valve opens, relieving
the pressure above the piston, which is then lifted from its seat by the plunger. Upon de-energizing the coil, a spring
closes the pilot valve and opens a bleed passageway to permit pressure to build above the piston and seat it.
*Valve Body - Cast Bronze, Globe Pattern - NPT ends
Coil Enclosure - Malleable or Cast Iron, 1/2 NPT conduit conn.
*Plunger - 430 Stainless Steel
*Pilot Valve - 303 Stainless Steel
*Bonnet Tube - 304 Stainless Steel
*Body Seal - Non Asbestos Gasket
*Orifi ce Seal - Glass Filled Tefl on
Coil - Encapsulated Class H, 18 leads
To control the fl ow of Hot Liquids, Hot Gases, Cryogenics** and any
other fl uids not reactive with construction materials and free of sediment.
Cryogenic fl uids include Liquid Oxygen (-297 F), Liquid Argon (-303 F) and
Liquid Nitrogen (-320 F). Valve operates from zero to maximum differential
pressure indicated in table. Valve must be mounted in horizontal pipe with
solenoid enclosure vertical and on top.
