Mastech MS6100 digital frequency counter 10HZ - 1.3GHZ

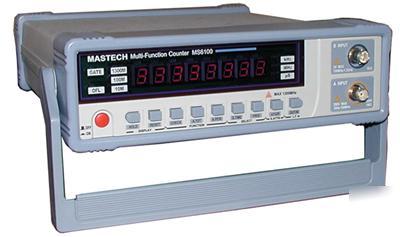

Mastech Frequency Counter, MS6100
The Mastech MS6100 is a multi-function tool that gives you a higher accuracy on Frequency and Period of a signal. It compliances with IEC 1010-1 standard.
10 Hz to 10MHz; Resolution: 1/10/100Hz selectable
10MHz to 100 MHz, Resolution: 10/100/1,000Hz Selectable.
Accuracy: 1 Count 1 X 10 -5X Frequency (Month)
1 Count 1 X 10 -6X Frequency (Minute)
100MHz to 1,300 MHz : Resolution: 100Hz, 1KHz and 10 KHz selectable.
Channel A ( Only): 0.1S to 0.1uS ( 10Hz to 10MHz), resolution: 0.0us,0.00uS,0.000uS selectable.
Channel A (Only): 10Hz to 10 MHz, Resolution: 1 count input.
The accuracy for the measurement is
1 count 1 X10 -5 X frequency( Month)
1 count 1 X 10-6 X frequency (minute)
Size: 300mm(L)X260mm(W)X74mm(H)
