Moore 11" ultra precise horizontal & vert. rotary table

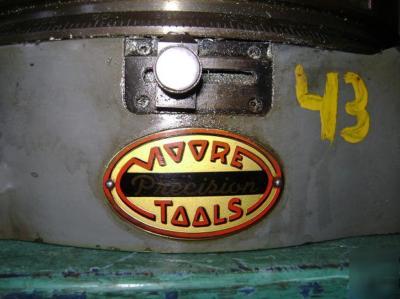

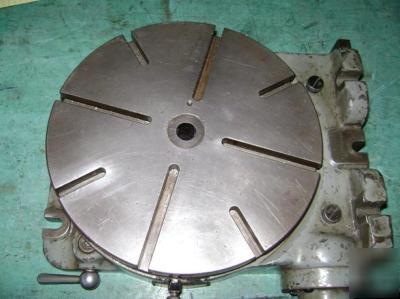

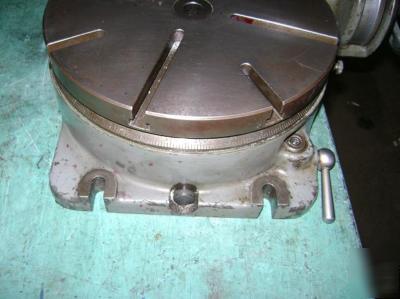

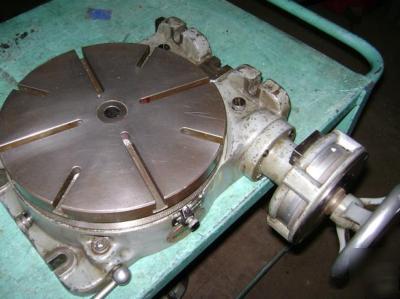

10 3/4" MOORE ULTRA PRECISE HORIZONTAL & VERTICAL ROTARY TABLE
4- 3/8" X 4" T SLOTS and 4 - 3/8" x 2" t slots
* info believed to be correct:
DIAMETER OF TABLE TOP .................. 10- 7/8"
HEIGHT IN HORIZONTAL POSITION .......... 4- 1/2"
HEIGHT IN VERTIVAL POSITION ............ 14- 1/16"
HEIGHT OF AXIS OF ROTATION, TABLE IN
VERTIVAL POSITION ..................... 7- 7/8"
TABLE GRADUATIONS ...................... DEGREES
DIAL GRADUATIONS ....................... MINUTES
VERNIER GRADUATIONS .................... 5 SECONDS
DIAMETER OF DIAL ....................... 5"
SIZE OF T-SLOTS ........................ 3/8"
WEIGHT ................................. 125 LBS.
GROSS WEIGHT WITH MAHOGANY BOX ......... 240 LBS.
TOLERANCE (ACCURACY) WHEN NEW:
ANY POINT IN 360 DEGREES ............... +/- 6 SECONDS
TRUENESS OF ROTATION (TIR) ............. 0.000010"
FLATNESS OF TABLE TOP .................. 0.000050"
PARALLISM- TABLE TOP TO BASE ........... 0.000075"
CENTER HOLE BUSHING DIA. ............... 0.7500" +.0001"
LINE-UP BUSHING TRUENESS TO AXIS OR
ROTATION (TIR) ........................ 0.000090"
