Symbol PDT6846 portable data terminal kit complete

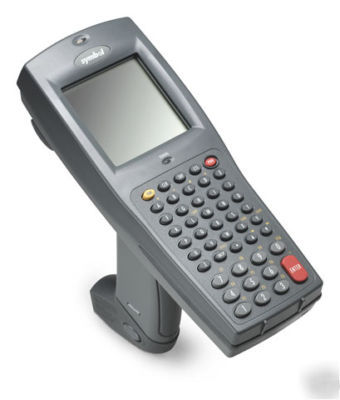

Symbol PDT6846 Mobile Data Device
The PDT 6800 Series terminal is a hand-held, battery-powered, portable data collection device. Data is entered from the terminal s keyboard or through the integrated laser scanner.
As a remote terminal, it collects and stores data that is later uploaded to a host computer. The PDT 6800 Series terminals include:

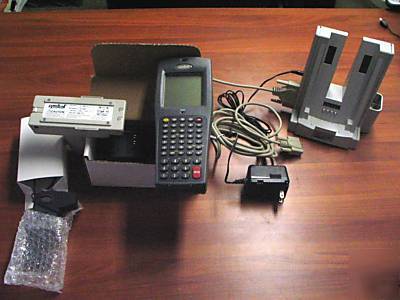

PDT6846-NI6642US, new battery, battery charger 21-32665-24 and single slot gun charger/sync station.
Refurbished by authorized Symbol service facility.
PDT6846 Specification Highlight
Dimensions: 7.0 in. H x 3.5 in. W x 8.8 in. L/ /178mm H x 89 mm W x 224 mm L
Weight: Batch: 24 oz/672 m with battery Wireless: 26 oz/728 gm with battery
Operating Temperature: -13 to 122 F/-25 to 50 C
Storage Temperature: -13 to 140 F/ -25 to 60 C
Humidity: 95% relative humidity, noncondensing
Drop Specification: Multiple 4 ft./1.2 m drops to concrete
Environmental Sealing: MIL-STD-810E/SAEJ1211/IP54
ESD: 15KV electrostatic discharge to all surfaces without loss of data
Keyboard, Standard: 35 or 46 large, hard, alphanumeric keys
Keyboard, IBM: 46 key, IBM 5250 or 3270 keypads and overlays
Display: 16-line by 21-character FSTN LCD, back light, reverse video, double-high and double-wide characters
Power: Removable, rechargeable battery pack
