Panasonic wv-80 wv-71 kit tv b/w camera vidicon w/ lens
MODEL: WV-80 CONTAINS WV-71 CAMERA ++
CONDITION: OPEN BOX- LOOKS CLEAN-GUARANTEED TO WORK PERFECTLY

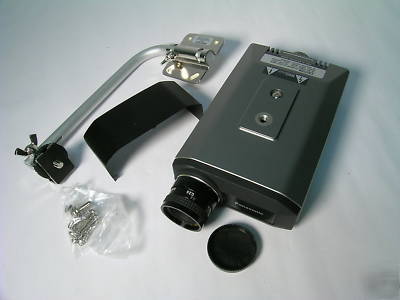

COMES WITH CAMERA, LENS, MANUAL AND MOUNT
Pick-up Tube: 2/3'' separate mesh static focus magnetic deflection pick-up tupe : Vidicon (S4097)
Scanning System: Random interlace (USA standard)
Horizontal Scanning Frequency: 15.75kHz Vertical Scanning Frequency: 60HZ Frame Frequency: 30HZ Connector: BNN connector (Female)
Maximum Distance to the Monitor:
Coaxial Cable Type Maximum Cable Length DC R/100 ft. of Inner Conductor RG-59/U 660 ft. (200 m ) Less then 30 ohms RG-6/U 1650 ft. (500 m ) Less then 12 ohms RG-11/U 2640 ft. (800 m ) Less then 7.5 ohms
Resolution: More then 500 lines at center Minimum Illuminations: 10 lux (1 footcandle) at F 1.6 ALC range: 10,000:1 with standard lens
Ambient Operating Temperature: 14 F - 122 F (-10 C - +50 C) S/N Ratio: More then 40dB
Dimensions: WV-71 (including hood) 102(W) x 49(H) x 210 (D) mm 4'' (W) x 1-15/16'' (H) x 6-15/16'' (D)
Weight: 0.64kg /1.4 lbs (including hood & lens
