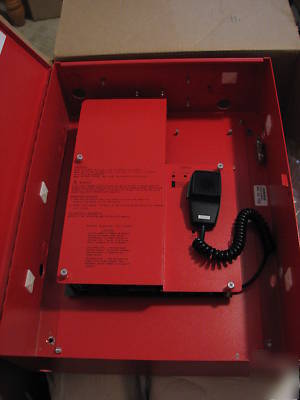

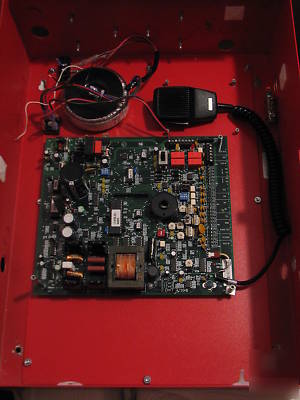

Wheelock safepath SP40/2 mass notification system
Used, Pulled in working Condition, 30 day warranty. Needs some wire terminals (can get from Wheelock)
The SP40/2 panel is a stand alone, single channel, 40 watt, supervised voice evacuation/emergency
message system with additional features of a Telephone Page Input, Night Ring Input and Background
One strobe NAC output section.
Requires separate NAC Circuit (9 to 31VDC) input or can be programmed to oper
Return allows pass through for Wheelock synchronized strobes, remote SP40/2 p
Synchronized output when using Wheelock s Synchronized strobe products.
Supervised with 10K Ohm EOLR.
Trouble LEDs for Open and Short conditions.
40 Watt Audio Amplifier section.
Selection of 25Vor 70V speaker output.
Trouble LEDs for Open and Short Conditions
Capable of playback and record.
Digital Voice Message Chip contains the recording program and memory for 3 message se
Memory in 3 sections with corresponding inputs.
Activated by one of three NAC (9 to 31VDC) inputs (IN1, IN2, or IN3).
Capable of selecting the strobe NAC output for each input.
3 Priority ordered audio inputs
Hand held, push-to-talk (PTT) microphone, Priority One. For live, emergency voice annou
and instructions. The microphone overrides (mutes) any voice message or tones in progre
Auxiliary Input (AUX IN, CC/NAC)
CC or NAC initiates AUX IN audio
CC is supervised. NAC is not supervised.
For use with SAFTPATH 4 Remote Microphone Expander (SP4-RMX) or SAFTP
Digital Voice Section inputs (IN1, IN2, IN3).
IN1, IN2, and IN3 have priorities 3, 4, and 5 respectively.
IN1, IN2, and IN3 are not supervised.
Polarized for compatibility with standard reverse polarity supervision of circuit wiring.
Will not operate if the panel is on Battery.
Telephone Page (TEL), Priority 7
Accepts a Telephone Page Port Input.
Background Music (BGM), Priority 8
Will mute when any other input is used.
120VAC, 2.15A 50 - 60Hz input (IN)
24VDC, 12Ah Battery Backup (BAT +/-)
24VDC, 0.5A output terminals (24V +/-)
Ground Fault Detection Section.
Monitors Inputs and outputs for 600K Ohms minimum in relation to ground.
A dual-tone tone generator with 2 field selectable sounds (Code 3 Tone, Slow Whoop) that sound when
there is a Digital Voice Section Failure in alarm condition.
Full supervision with on-board diagnostics and trouble reporting circuits for:
Audio NAC circuit wiring open and short conditions
Strobe NAC circuit wiring open and short conditions
PTT Microphone open or not installed condition
Form C relay trouble contacts for external notification.
Built in sounder to indicate trouble, with a trouble silence switch to silence it. If the trouble is not
corrected in 20 minutes, the sounder will reactivate. (Trouble Silence Switch does not change the state
Remote reporting via output contacts for system trouble or alarm activation.
