1.5HP electric / hydraulic pump for tube bender

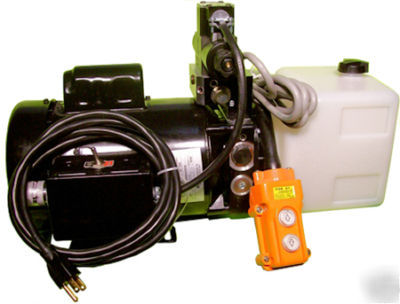

Electric/Hydraulic Pump - Perfect for Hydraulic Tube Benders!
* Motor - 115/208-230VAC; 17.8/9.0 - 8.9 Amps; 60 Hz 3450 RPM; 1PH; 1.5HP; 56FR; Continuous Duty; TEFC
* Pump - A.F.C. 0.8 CC/REV. (.049 CU.IN./REV.)
* Relief - Adjustable Relief Valve Set At 4300 P.S.I.
* Endhead - 3/8 NPTF Pressure-Return Port (2) 3/8-16 Tap x 1.38 Deep Mounting Holes D03 Valve Manifold Block with 9/16 SAE Ports "A" and "B")
* Tank - Plastic 1.0 Gallon (193 CU.IN. Usable) Horizontal Mount With Breather-Fill Port
* Unit Performance - 0.57 GPM AT 4000 PSI AT 115 VOLTS AC & 18 AMPS AT 45 CENTISTOKES (200 SSU)
* Factory Recommended Oil - AW-68 for warmer climates, AW-32 for colder climates
* BONUS - For a limited time, we will include for no extra charge, the hydraulic hose and quick connect fittings to use with the pump!
