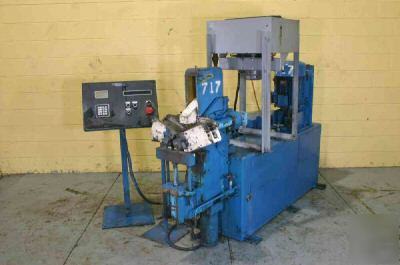

1" pines #5T vertical hydraulic tube bender
1" PINES #5T VERTICAL HYDRAULIC TUBE BENDER
SERIAL ............................... 44362-84155
MODEL ................................ 5T
NEW IN ............................... 1984
NON FERROUS .......................... (2) 1" X .072"
MILD STEEL ........................... (2) 1" X .065"
STAINLESS ............................ (2) 1" X .049"
SQUARE BAR ........................... (2) 1/2"
ROUND BAR ............................ (2) 5/8"
BENDS PER HOUR ....................... 2000 MAXIMUM
MAXIMUM BENDING ANGLE ................ 100 DEGREES
MAXIMUM CENTERLINE RADIUS ............ 2- 3X'S TUBE DIAMETER
MAXIMUM CENTERLINE RADIUS ............ 90 DEGREES - 4-1/2"
PUSH BUTTON CONTROLS ................. YES
DIGITAL DIAL-A-BEND SELECTOR ......... YES
BIJUR LUBE SYSTEM .................... YES
THERMAL COOLING SYSTEM ............... YES
PALM BUTTON .......................... YES
MOTOR ................................ 20 HORSEPOWER
