1000PCS KTC9014 s-d, KTC9015 s-c transistor kec

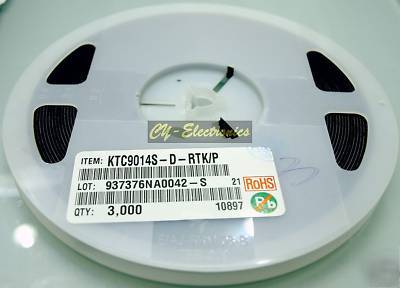

Type: KTC9014S-D-RTK/P , EPITAXIAL PLANAR NPN TRANSISTOR
hFE Classification: D:400 to 1000
: hFE(IC=0.1mA)/hFE(IC=2mA)=0.95(Typ.).
Low Noise :NF=1dB(Typ.) at f=1kHz.
CHARACTERISTIC SYMBOL RATING UNIT
Collector-Base Voltage VCBO 60 V
Collector-Emitter Voltage VCEO 50 V
Collector Power Dissipation PC * 350 mW
Storage Temperature Range Tstg -55 150
Type: KTC9015S-C-RTK/P , EPITAXIAL PLANAR NPN TRANSISTOR
hFE Classification: C:200 to 600
: hFE(IC=-0.1mA)/hFE(IC=-2mA)=0.95(Typ.).
Collector-Base Voltage VCBO -50 V
Collector-Emitter Voltage VCEO -50 V
Emitter-Base Voltage VEBO -5 V
