#10050 - landis model 1R universal cylindrical grinder

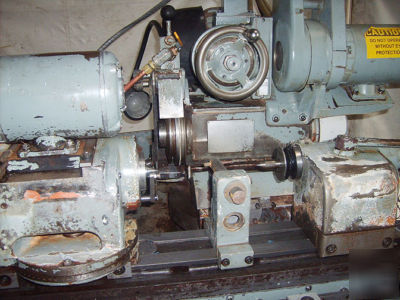

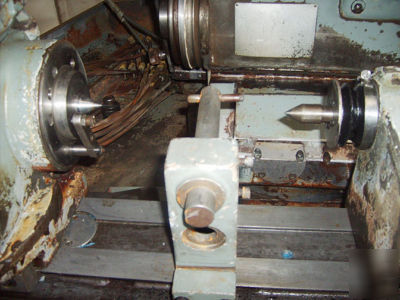

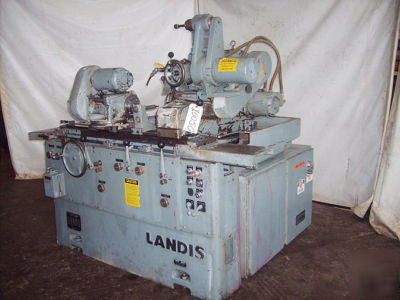

10" x 20" LANDIS MODEL 1R UNIVERSAL CYLINDRICAL GRINDER WITH SWING DOWN INTERNAL GRINDING SPINDLE
Nominal distance between work centers 20"
Maximum diameter work standard machine will grind with full size standard wheel 10-7/8"
Traverse speed (variable) 2" to 240" RPM
Carriage traverse per turn of handwheel 0.200"
Degrees included angle 20 degrees
Grinding wheel size-standard 12" x 1" x 5"
Grinding wheel-maximum width 1-1/2"
Grinding wheel spindle speeds 2000 & 2530 RPM
Grinding wheelhead swivel range 90 deg. each way
Headstock work center #10 Jarno
Headstock swivel range 120 degrees
Diameter hole through spindle 1"
Overall dimensions 106"L-R x 60"F-B x 60"H
1/4 HP Wheel spindle lubrication motor
1 HP Inernal grinding spindle motor
Swing down internal grinding attachment
