Gradall telehandler reach forklift fork lift truck

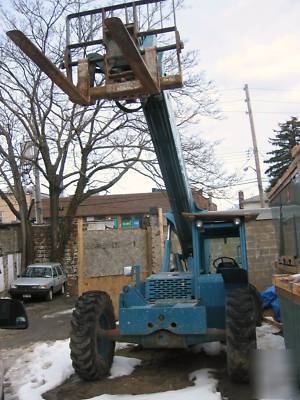

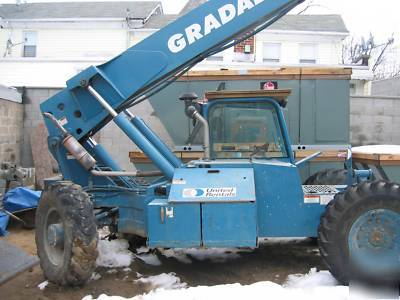

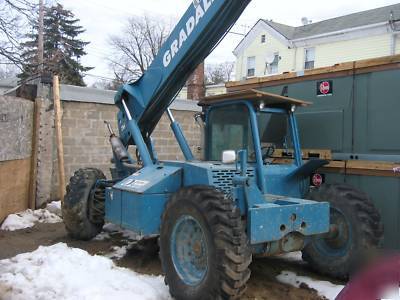

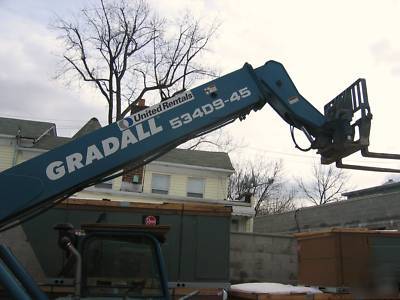

Gradall All Terrain Fork Lift 45'
Read more: http:// /cars/2000/chevrolet/express/3500_extended_passenger_van/188/specifications/index.html#ixzz0kaA7zcEq
* Unit is an active rental unit in good working order.
* Located in Bronx, NY 10465.
* See link for additional specs: http:// /equipment_pdf_library/Gradall_534D9-45_Telehandler_Product_Brochure.pdf

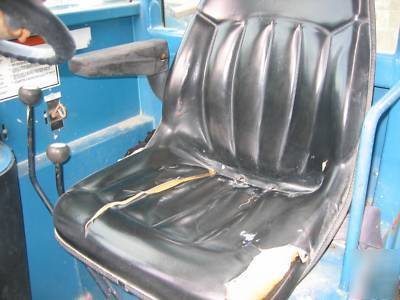

22% more cab room than before for extra comfort
9,000 lb (4,082 kg) capacity
Up to 45 ft (13.7 m) lift height

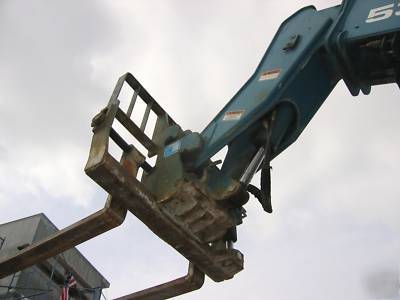

Ultra-strong boom allows for a full range of attachments
Single joystick control for boom lift and crowd
No-shift hydrostatic drivetrain

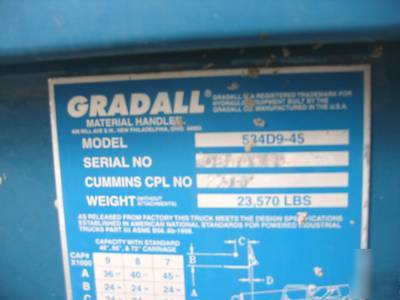

Gradall 534D9-45 Technical Specs
Rated Capacity @ 24 in. (610 mm) Load Center = 9,000 lb (4,082 kg)
Maximum Lift Height = 45 ft (13.7 m)
Capacity @ Maximum Lift Height = 7,000 lb (3,175 kg)
Maximum Reach = 31 ft 6 in. (9.6 m)
Capacity @ Maximum Reach = 1,600 lb (726 kg)
Approximate Operating Weight = 24,420 lb (11,077 kg)
Length (Less Forks) = 237 in. (6.01 m)
Wheelbase = 135 in. (3.42 m)
Outside Turning Radius = 173 in. (4.39 m)
Ground Clearance = 19 in. (483 mm)

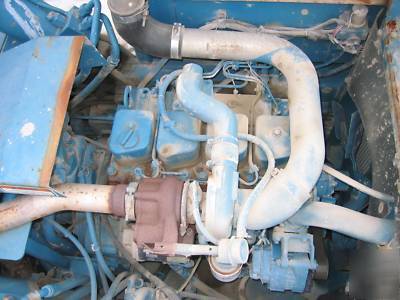

Engine = John Deere 4045TF275
HP and RPM = 110 hp @ 2,400 rpm

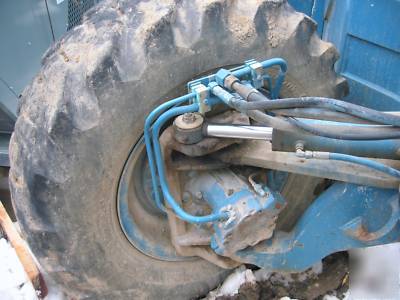

Axle - Front = High-Bias, Limited Slip
Axle - Rear = Planetary Hubs
Tires = 13:00 x 24 - 12PR, G2 type
Maximum Travel Speed = 18 mph (29 kmph)
Frame Tilt Left/Right Frame Leveling = 8 Degrees
Thanks for looking! Be sure to email any questions you may have. They will be answered quickly and accurately.
Unit is for pick up only. Bronx, NY 10465.
Most questions are answered same day prior and post sale. Please allow up to 48 hours for a response.
Communications may be slower during the weekend
