Niles heavy duty engine lathe 60" swing x 56FT c to c


NILES HEAVY DUTY ENGINE LATHE 60INCH SWING BY 56 FT CENTER TO CENTER FROM GOVERNMENT STANDBY STORAGE

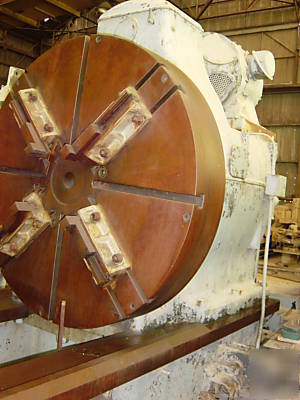

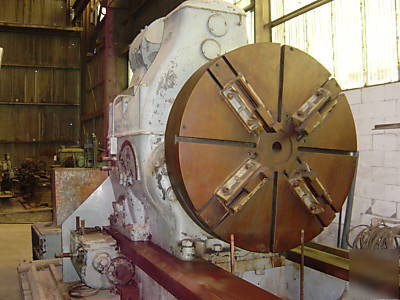

1. One 60 inch four jaw chuck

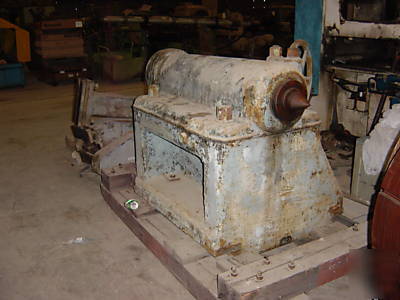

5. Tail stock 8 inch spindle diameter with # 7 morse taper
11. Lead screw diameter 3 inch x 1 inch per inch
13. Overall width 9 feet 6 inches
14. Overall height 9 feet 9 inches
15. Electrical requirements 220 volts 3 phase 60 cycles
2. Taper attachment length 4 ft 3 inches
3. Taper per foot Direct connected
4. One 4-jaw chuck 60 inches diameter
Lathe swings 60 inches over bed and 48 inches over carriage, will take 56 feet between centers. 80 selective speeds lowest 1 rpm to 72 rpm s. Lathe has 32 changes of power longitudinal feed ranging from .025 inch to .700 inches per revolution of spindle and same number of changes of power cross and angular feed ranging from .010 inch to .230 inch per revolution of spindle and thread cutting capacity of 32 different threads ranging from 1 thread in 2 inches to 12 threads per inch, both left and right hand.
Price - $ 115,000.00 FOB our floor Wichita, KS.
