Savage wide-bed hyd traveling-gantry str press #25922

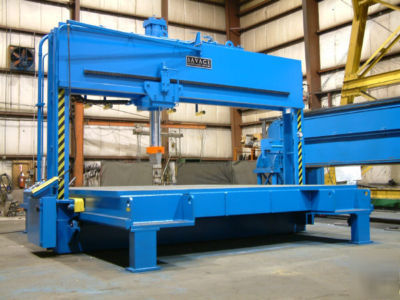

110 TON SAVAGE WIDE-BED HYDRAULIC TRAVELING-GANTRY
STRAIGHTENING PRESS FOR STEEL PLATE & WELDMENTS
Multiposition Selectable Pushbuttons
Pressure Control Potentiometer
Adjustable 2-Speed Traveling Gantry
Adjustabel 2-Speed Cross Traveling Head
Tonnage Capacity @ 2800 PSI................ 110-TON
Table Dimensions, L-R x F-B................ 204" x 185"
Stroke Length.............................. 48"
Daylight Opening, Maximum.................. 48"
Distance Between Gantry Uprights........... 193.5"
Cylinder Ram, Bore x Rod................... 10" x 7"
Ram Speeds, Fast Advance................... 120 IPM
Ram Speeds, Slow Advance................... 30 IPM
Ram Speeds, Pressing....................... 8 IPM
Ram Speeds, Fast Retract................... 115 IPM
Hydraulic Reservoir Capacity............... 60-GALLONS
Height Floor to Table Top.................. 43"
Overall Height............................. 12'4"
Weight Approximately....................... 90000 LBS
Condition And Can Be Inspected In Plant Under
Power For A Limited Time In A High Accuracy
PRICE: BEFORE REMOVAL...................... $69,500.00
