TH2821B portable lcr meter handheld bridge

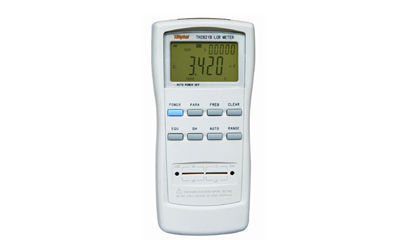

TH2821B Portable LCR Meter Handheld Bridge
TH2821B is the first portable LCR meter in China. It can measure 6 basic parameters: inductance L, capacitance C, resistance R, impedance Z, dissipation factor D and quality factor Q. It has measurement accuracy of 0.3% and 4-bin sorting. Applied complete 5-terminal measurement configuration solves problem of measurement for equivalent series resistance and capacitor with small dissipation that other portable LCR meters can t solve. It can replace general low-frequency LCR meter.
* Only portable LCR meter at home
* Basic accuracy: 0.3% with resolution of 0.01%
* 5-terminal measurement configuration, providing accurate ESR and dissipation measurement
* Main and sub parameters displayed
* Battery and external power supply
Signal Frequency 100Hz 120Hz 1KHz
Comparator 4bins: NG, P1, P2, and P3 with beeper alarm
