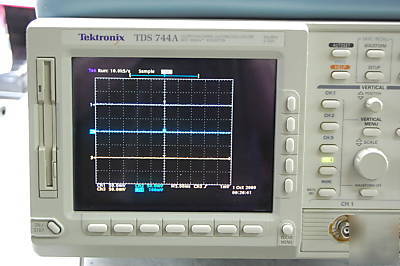

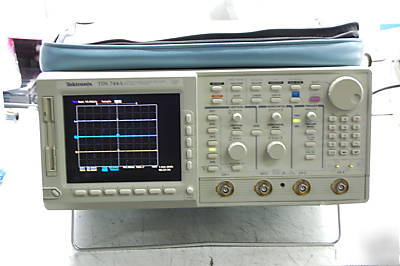

Tektronix tds 744A TDS744A 4CH 500MHZ oscilloscope

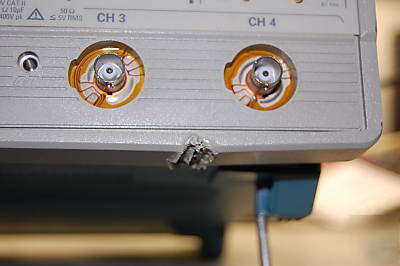

TEKTRONIX TDS 744A TDS744A 4CH 500MHZ OSCILLOSCOPE WITH OPTIONS 5,1F,2F,1M,13. UNIT CAME IN CONTACT WITH A SOLDERING IRON WHICH RESULTED IN SOME DAMAGE TO THE PLASTIC FRAME (SEE PHOTO). 30 DAY WARRANTY. NO PROBES OR MANUALS.
5= VIDEO TRIGGER, NTSC,PAL,HDTV,FLEXFORMAT
13= RS232 and Centronics Interface
2F= Advanced Waveform Math Option (includes FFT w/ various window functions)
* InstaVu Acquisition (up to 400,000 wfms/sec)
* 500 MHz Bandwidth (TDS754A/744A/724A); 1 GHz (TDS784A/782A)
* Sample Rates to 2 GS/s (TDS782A/754A/744A)
* 2 Input Channels (TDS782A/724A)
* 4 Input Channels (TDS784A/754A/744A)
* Pulse Width, 1 ns Glitch; Runt, Pattern, State, Triggering
* 1 mV/div -10 V/div Sensitivity
* Infinite and Variable Persistence
* Record Lengths to 500,000 Points (250,000 Points on TDS782A/724A)
* 8-Bit Vertical Resolution and up to 13 Bits with HiRes
* HighResolution Color Monitor
* 3.5Inch DOS Floppy Disk Drive (Standard)
* Tek TriStar (DSP) Processor
* Slew Rate, Setup & Hold Violation, and Time-Out Triggers
* Waveform Pass/Fail Testing
* Advanced Signal Processing Functions
* Desktop Publishing Outputs
* Segmentable Acquisition Memory
MORE INFO http://www2.tek.com/cmswpt/psdetails.lotr?ct=PS&cs=Data+Sheets&ci=14414&lc=EN
