little giant pump laundry tray sink drain wrs-6 506055

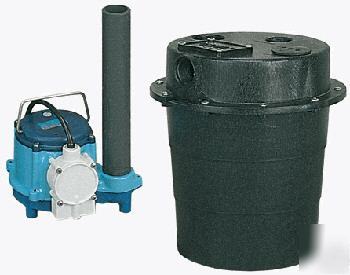

Drainosaur Water Removal System Includes 5-gallon polypropylene tank. Tank lid has 1 1/2" FNPT (38.1mm) side intake port, 1 1/2" FNPT (38.1mm) top discharge port, and 2" FNPT (51mm) top vent port. Easy-to-remove filter trap. Also includes 3/10 HP automatic submersible sump pump with 8' (2.4m) power cord and 3-prong grounded plug; and 1 1/2" (38.1mm) diameter pipe from pump to lid. Basin is IAPMO approved. # 3/10HP Shaded Pole Motor # 46 GPM/174 LPM # 18'/5.5m Maximum head # Intermittent Liquid Temp. up to 125 F # 1 1/2" FNPT (38.1mm) Discharge # Epoxy coated cast iron housing # Polycarbonate Cover # Polypropylene Volute # Nylon Impeller # Carbon/Ceramic Shaft Seal # Upper and lower, Sintered sleeve bearings # Automatic Operation # Diaphragm switch Activator # Switch on - 7" - 10"/17.8cm - 25.4cm # Switch off - 1" - 4"/2.54cm - 10.2cm # 115V, 50/60Hz, 9 amps, 8' (2.4m) power cord # IAPMO Approved Basin Product Specifications Spec Sheet Item Number: 506055 Model Number: WRS-6 WILLIAMSON NEW ENGLAND ELECTRIC IS A FULL SALES AND SEVICE ELECTRIC MOTOR,PUMP AND AIR COMPRESSOR SHOP.FEEL FREE TO CALL US AT (***)-287-9000 MON-FRI 8-4 EASTERN
