10 ghz 4 pole tuneable filter, nice 10.368, nos

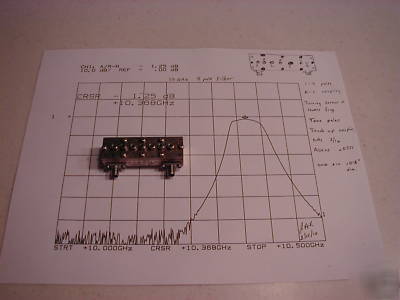

DESCRIPTION: Here is a miniature 4 pole filter from the famous "White Box", easily tunes to 10.368 (comes with plot & information on this), uses 2 SMA "2 hole" flange connectors that slip -on .018 inch diameter pins (field replaceable types) connectors not included, comes with exposed pins (was used as a "drop-in" filter in the RF assembly). Bandwidth about 60 MHz, about 1.25 dB loss (!). Easily rejects 10.224 LO & IF image by 60 dB min. Great for transverter RF filter! With plot.
