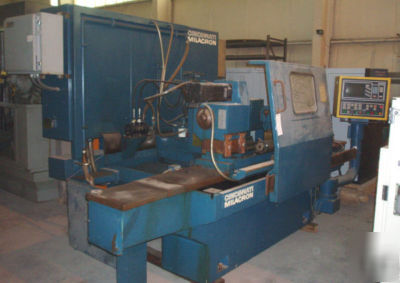

12" x 20" cin-milacron cnc series "210" step grd #23360
New 1987, Serial No 3521B0186-001, Model 12x20-90
Acramatic #700G CNC Control (S/N 51-A700G15J-0185)
CNC Table-Type Single Point Footstock Mounted
Live/Dead Spindle Variable-Speed Headstock
Swing Over Table, Maximum................ 13"
Grinding Diameter, Maximum (New Wheel)... 12"
Grinding Diameter, Minimum (Worn Wheel).. .5
Distance Between Centers, Nominal........ 20"
Weight Capacity Between Centers.......... 220 LBS
Grinding Wheel Diameter, Standard........ 20"
Grinding Wheel Width, Standard........... 3"
Grinding Wheel Hole Diameter............. 8"
Work Center Tapers....................... #10 JARNO
Wheel Speed, New Wheel................... 8500 SFPM
Workhead Spindle Speeds, Infinite........ 40 TO 850 RPM
Grinding Wheelhead Spindle Motor......... 10 HP
Floor Space Required, L x W.............. 13'4" x 7'6"
Overall Height........................... 7'
Weight, Approximately.................... 14000 LBS
As Taken From Cincinnati-Milacron's Plant.
