4 pcs maxim MAX232 RS232 driver receiver ttl converter
The MAX232 is a dual driver/receiver that includes a capacitive voltage generator to supply TIA/EIA-232-F voltage levels from a single 5-V supply. Each receiver converts TIA/EIA-232-F inputs to 5-V TTL/CMOS levels. These receivers have a typical threshold of 1.3 V, a typical hysteresis of 0.5 V, and can accept 30-V inputs. Each driver converts TTL/CMOS input levels into TIA/EIA-232-F levels. The driver, receiver, and voltage-generator functions are available as cells in the Texas Instruments LinASIC library.
* Meets or Exceeds TIA/EIA-232-F and ITU Recommendation V.28
* Operates From a Single 5-V Power Supply With 1.0-F Charge-Pump Capacitors
* Operates Up To 120 kbit/s
* Two Drivers and Two Receivers
* Low Supply Current ...8 mA Typical
* ESD Protection Exceeds JESD 22
* 2000-V Human-Body Model (A114-A)
* Upgrade With Improved ESD (15-kV HBM) and 0.1-F Charge-Pump Capacitors is Available With the MAX202
* Applications TIA/EIA-232-F, Battery-Powered Systems, Terminals, Modems, and Computers

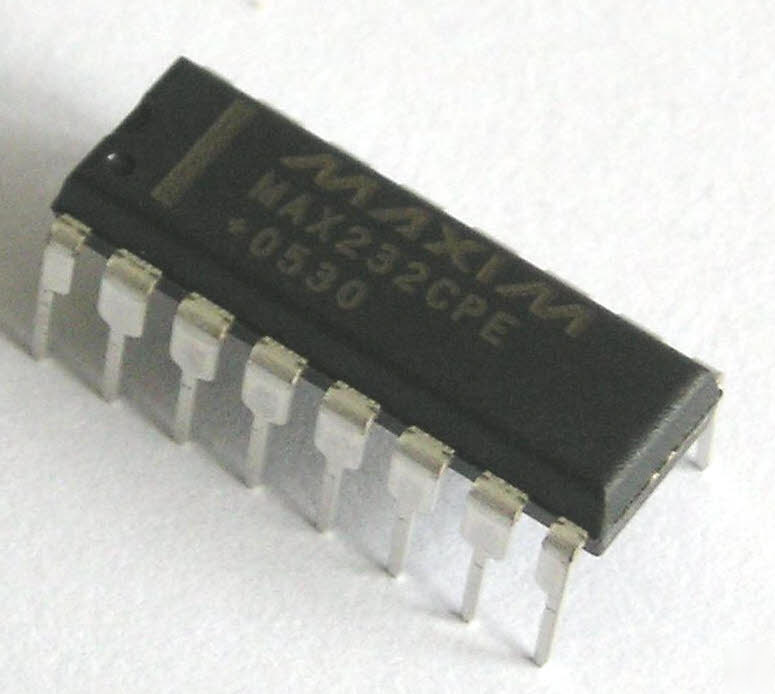

* 4 Pcs of MAX232CPE with DIP-16 Package type
