45 ton stamtec open back gap frame press #25885

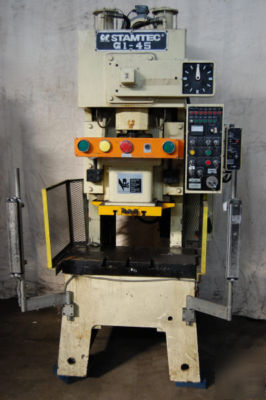

45 TON STAMTEC OPEN BACK GAP FRAME PRESS
New 2000, Serial No S001096, Model G1-45S,
Electrical Control w/Programmable Controller
Tonnage Capacity,........................ 45 TON
Stroke Length............................ 3.15"
Die Height to Bolster, (SDAU)............ 9.45"
Shut Height to Bed, (SDAU)............... 12.45"
Ram Adjustment (Power)................... 2.36"
Ram Area, L-R x F-B...................... 16" x 12"
Bed Area, L-R x F-B...................... 33.5" x 17.5"
Opening In Bed, L-R x F-B................ 19.7" x 13.2"
Strokes Per Minute, Variable............. 40 to 100 SPM
Motor, Horsepower........................ 7.5 HP VS
Electrical System........................ 230-460/3/60
Floor Space Required, W x D.............. 4' x 3'2"
Weight Approximately..................... 7500 LBS
PRICE: F.O.B. OUR WAREHOUSE.............. $14,500.00
