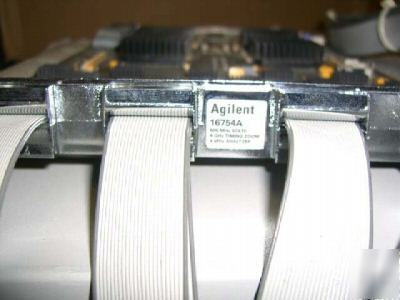

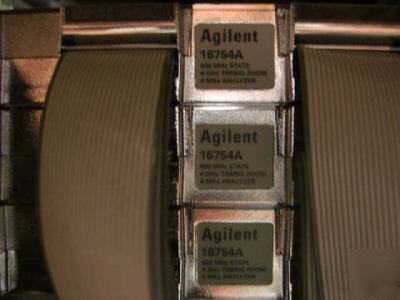

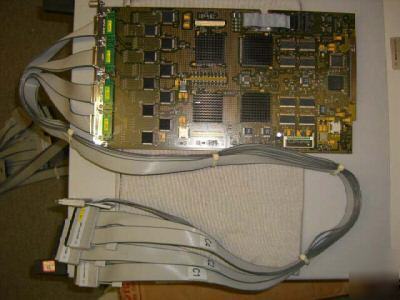

Agilent 16754A 68CH.600MHZ/4GHZ la card 16753A 16755A
The Agilent 16754A state and timing analysis module with 4M memory, delivers the performance and capabilities you need to debug and validate digital systems using today's new high-speed system interconnects. The innovative "eye scan" mode in the 16754A enables you to examine eye diagrams on multiple circuit nodes simultaneously, for a rapid, comprehensive view of signal integrity. Another feature, "eye finder" automatically adjusts the position of the data valid window on every channel independently, ensuring the most reliable data capture on high-speed interconnect and buses. Accurate & Reliable Measurements Begin at the Probe Tip! Probes are ordered separately. Choose a probe that fits your application: Agilent's Recommended Probes Features * "Eye scan" feature saves you time and gives you confidence by measuring eye diagrams on hundreds of channels simultaneously without having to move probes * 4 GHz "timing zoom", (simultaneous timing analysis on all channels), with 64 K memory for unprecedented time coverage of high-resolution timing measurements * "Eye finder" feature automatically adjusts data valid window position on each channel with ps
