Carbonator tank liquid level probe # 701216

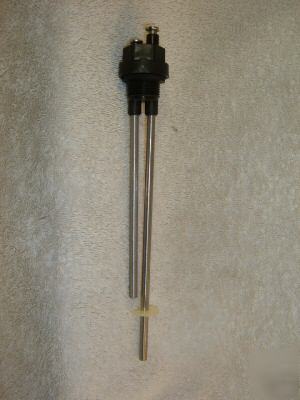

This is the probe assemble that screws into the top of the carbonator tank and tells the carbonator motor (via the circuit board) when to start and stop.
It has two screw terminals on top where the wire connect.
The threads that screw into the tank are 3/4" Male Pipe Thread style.
The longer probe goes down about 8-1/2" from the base and has a clear plastic split washer clipped on it approx. 1-1/2" from the bottom of the probe.
The shorter probe goes down about 6-1/2" from the base.
The top part has a square head so you can use a adjustable wrench to install or remove it.
